Hyundai R220-5 Excavator Final drive Travel Reduction Gearbox 703791 610B1101-0100 703795C
Item No.: hyundai R220-5 travel reduction gear gearbox
Product Description
Hyundai R220-5 Excavator Final drive Travel Reduction Gearbox 703791 610B1101-0100 703795C
703795C reduction gear for R220-5 Hyundai Excavator final drive gearbox 610B1101-0100. Offer reduction gearbox and spare parts for hyundai excavators, planetary gear, sun gear, carrier planetary, pinion shaft, etc.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/application and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
B. If you can not find the parts you want here, please contact us for and inquiry. Thank you.
Email: sales@landamachinery.com
Skype: Landamachinery

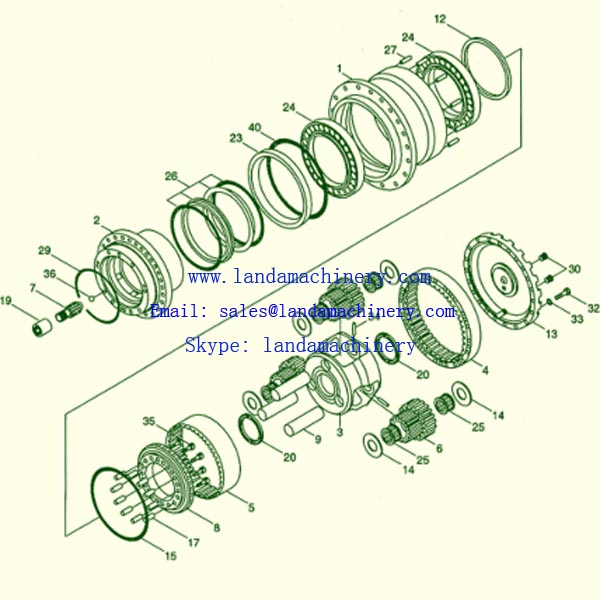

Parts List:
| 703791 | REDUCTION GEARBOX | 31EM-40010 | TRAVEL MOTOR |
| 610B1101-0100 | HUB ASS'Y | 31EM-40011 | HYDRAULIC MOTOR |
| 703795C | HUB ASS'Y | 703793A | MOTOR HYDRAULIC |
| 112563B | HUB | 703797 | COVER ASSY |
| 119807 | RING GEAR | 115299C | COVER ASSY |
| 112564A | PIN | 112575B | VALVE ROD |
| 610B1102-0200 | SHAFT ASS'Y | 108061 | PPLUG |
| 703796A | SHAFT ASS'Y | 211665 | VALVE ROD |
| 112565D | SHAFT | 112586 | SEAT |
| 112566 | COUPLING GEAR | 211668A | SPRING |
| 104034B | PIN SHAFT | 201733 | O-RING |
| 112567A | CARRIER | 204548 | PLUG |
| 119808 | GEAR RING | 112584 | VALVE RELIEF |
| 119536 | GEAR KIT | 201710 | O-RING |
| 119537 | SUN GEAR | 105637 | VALVE |
| 112568A | SHAFT | 203355 | SPRING |
| 112569A | SPACER | 201719 | O-RING |
| 112570 | COVER | 104126A | PLUG |
| 119884 | THRUST RING | 108064 | PLUG |
| 112571 | RING | 703798E | PISTON |
| 107589 | COUPLING | 112576D | PISTON |
| 120232 | THRUST PLATE | 112577B | SHOE |
| 112572B | SEAL RING | 215393 | SPRING |
| 211662 | THRUST BEARING | 160F2105-0000 | PISTON ASS'Y |
| 211663 | ROLLER BEARING | 703799B | PISTON ASS'Y |
| 215214 | FLOATING SEAL KIT | 203336C | PISTON |
| 204449 | O-RING | 112578A | SHOE |
| 108065 | PLUG | 703968 | PLATE ASS'Y |
| 214424 | BOLT | 107595A | PLATE |
| 105575 | WASHER | 107042A | VALVE |
| 112573B | PIN | 204548 | PLUG |
| 200725 | BOLT | 112588 | SEAT |
| 203316 | BALL | 211675 | SPRING |
| 201765 | O-RING | 211676 | SPRING |
| 203493 | O-RING | 201733 | O-RING |
