Hyundai R225-7 Swing reduction gearbox XKAQ-00023 Planetary gear 1st XKAQ-00025 XKAQ-00067 XKAQ-00011
Product Description
Hyundai R225-7 Swing reduction gearbox XKAQ-00023 Planetary gear 1st XKAQ-00025 XKAQ-00067 XKAQ-00011
R225-7 excavator swing planetary XKAQ-00011 XKAQ-00023 XKAQ-00025 XKAQ-00067 for Hyundai Excavator swing reduction gearbox. Offer spare parts for Hyundai reduction gearbox, planetary gear, sun gear, carrier planetary, pinion shaft, etc.
Landa Machinery Equipment Co., Limited supply brands of excavators spare parts, Quality replacement parts for Caterpillar, Case, Daewoo Doosan, Hitachi, Hyundai, JCB, John Deere, Kobelco, Komatsu, Kato, Kubota, Sumitomo, Volvo, etc. Genuine original parts and high quality stable OEM parts meet different need for customers. Full range Excavator Hydraulic System Oil Seal Components and seal kits, Hydraulic Breaker rock hammer oil seal and seal kits, Hydraulic Pump and Hydraulic Motor, and repair component kits for hydraulic pump and motors, Engine parts and engine related parts, electric solenoid valve, sensors, etc.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/application and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
B. If you can not find the parts you want here, please contact us for and inquiry. Thank you.
Email: sales@landamachinery.com
Skype: Landamachinery

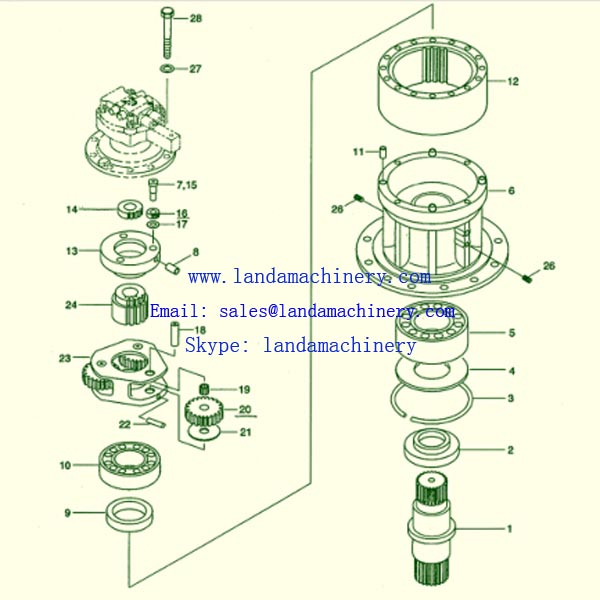

Parts List:
31N6-10150 | REDUCTION GEAR | 31N6-10130 | SWING MOTOR ASSY |
XKAQ-00002 | CASING GEAR | 31N6-10140 | SWING MOTOR UNIT |
XKAQ-00005 | DRIVE SHAFT | XJDB-00002 | INNER RING |
XKAQ-00018 | SPACER | XJDB-00003 | OIL SEAL |
XKAQ-00026 | ROLLER BEARING | XJDB-00004 | ROLLER BEARING |
XKAQ-00032 | OIL SEAL | XJDB-00005 | BACKING SPRING |
XKAQ-00029 | ROLLER BEARING | XJDB-00006 | CAM PLATE |
XKAQ-00076 | THRUST PLATE | XJDB-00007 | RETURN PLATE |
XKAQ-00075 | CARRIER | XJDB-00008 | PISTON ASSY |
XKAQ-00074 | STOP RING | XJDB-00009 | LINING PLATE |
XKAQ-00073 | RING GEAR | XJDB-00010 | PLATE |
XKAQ-00072 | KNOCK PIN | XJDB-00011 | O-RING |
XKAQ-00014 | PINION GEAR | XJDB-00012 | PISTON |
XKAQ-00071 | THRUST WASHER | XJDB-00013 | O-RING |
XKAQ-00023 | PLANETARY GEAR | XJDB-00014 | SPRING |
XKAQ-00070 | PIN | XJDB-00015 | PARRELLEL PIN |
XKAQ-00048 | PIN SPRING | XJDB-00016 | PISTON |
XKAQ-00011 | SUN GEAR | XJDB-00017 | CAP |
XKAQ-00015 | CARRIER | XJDB-00018 | O-RING |
XKAQ-00057 | SIDE PLATE | XJDB-00019 | SCROWWAVE |
XKAQ-00019 | PIN | XJDB-00020 | TEFLON RING |
XKAQ-00030 | CAGE NEEDLE | XJDB-00021 | BUSH |
XKAQ-00069 | BUSH | XJDB-00022 | BALANCE PLATE |
XKAQ-00025 | PLANETARY GEAR | XJDB-00023 | NEEDLE BEARING |
XKAQ-00044 | LOCK WASHER | XJDB-00024 | SNAP RING |
XKAQ-00068 | SIDE PLATE | XJDB-00025 | CYLINDER ASSY |
XKAQ-00067 | SUN GEAR | XJDB-00026 | HOUSING |
XKAQ-00047 | STOP RING | XJDB-00027 | COLLAR |
XKAQ-00049 | PRESSURE PLUG | XJDB-00028 | PLUG |
XKAQ-00066 | PLUG | XJDB-00029 | RING SNAP |
XKAQ-00065 | SOCKET BOLT | XJDB-00030 | BYPASS VALVE ASSY |
XKAQ-00035 | GAUGE PIPE | XJDB-00031 | BACK-UP RING |
XKAQ-00034 | BAR-LEVEL GAUGE | XJDB-00032 | O-RING |
XKAQ-00031 | COVER PLATE | XJDB-00033 | O-RING |
XKAQ-00064 | BOLT HEX | XJDB-00034 | COVER |
XKAQ-00043 | PLATE LOCK | XJDB-00035 | RELIEF VALVE ASSY |
XKAQ-00042 | BOLT HEX | XJDB-00036 | O-RING |
XKAQ-00041 | RING STOP | XJDB-00037 | SOCKET BOLT |
XKAQ-00040 | PLATE SIDE | XJDB-00038 | TIME DELAY VALVE |
31N6-10140 | SWING MOTOR UNIT | XJDB-00039 | O-RING |
31N6-40990 | seal | XJDB-00040 | O-RING |
CO0071A | o-ring seal | XJDB-00041 | SOCKET BOLT |
CO0067B | o-ring seal | XJDB-00042 | VALVE CHECK |
31N6-40021 | TURNING JOINT | XJDB-00043 | SPRING |
31N6-40910 | HUB | XJDB-00044 | CAP |
31N6-40920 | SHAFT | XJDB-00045 | BACK-UP RING |
31N2-40930 | COVER | 31N6-10150 | REDUCTION GEAR |
