Hydraulic Hammer Parts for HB20G Furukawa Breaker Repair
Item No.: HB20G Parts
Product Description
Hydraulic Hammer Parts for HB20G Furukawa Breaker Repair

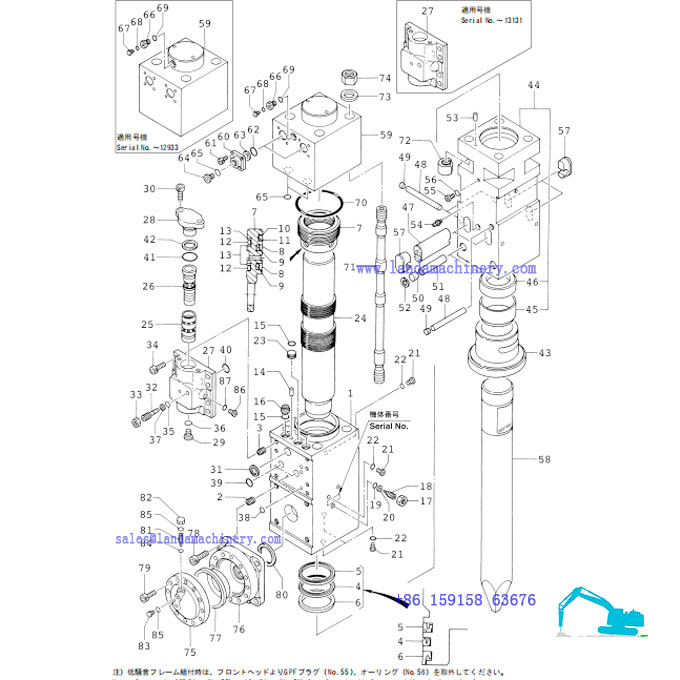

Furukawa HB20G Breaker Parts
Spre Parts for HB20G Rock Breaker Furukawa Hammer
| Breaker Parts | Main Body | Back Head | N2 Charging Valve | Cylinder | Seal Retainer |
| Socket Plug | Percussion Piston | Adapter | Valve | Valve Plug | Valve Sleeve |
| Front Head | Grease Nipple | Chisel Rod Pin | Stop Pin | Rubber Plug | Front Head Pin |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush | Lower Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod | Hex Nut |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover | Membrane |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal | Step Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt | Upper Cushion |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy | Shock Absorber |
| HB15G-25224 | HB20G-25224 | HB30G-25224 | HB40G-25224 | HB50G-25224 |
| HB15G-20106 | HB20G-20206 | HB30G-20206 | HB40G-20206 | HB50G-20106 |
| HB15G-20107 | HB20G-20107 | HB30G-20107 | HB40G-20107 | HB50G-20107 |
| HB15G-10201 | HB20G-10301 | HB20G-700601 | HB40G-10201 | HB50G-10301 |
| HB15G-10102 | HB20G-11201 | HB30G-11201 | HB40G-11301 | HB50G-11301 |
| HB20G-20202 | HB20G-20402 | HB30G-20402 | HB40G-20402 | HB50G-20302 |
| HB20G-20201 | HB20G-20301 | HB30G-20201 | HB40G-20201 | HB50G-20401 |
| HB20G-20204 | HB20G-20204 | HB30G-20204 | HB40G-20204 | HB50G-20104 |
| HB20G-20205 | HB20G-20305 | HB30G-20205 | HB40G-20205 | HB50G-20105 |
| HB15G-36311 | HB20G-36311 | HB30G-36311 | HB40G-36311 | HB50G-36111 |
| HB15G-36302 | HB20G-36302 | HB30G-36302 | HB40G-36302 | HB50G-36102 |
| HB15G-36306 | HB20G-30306 | HB30G-36306 | HB40G-36306 | HB50G-36106 |
| HB15G-36305 | HB20G-36305 | HB30G-36305 | HB40G-36305 | HB50G-36105 |
| HB15G-80314 | HB20G-81728 | HB30G-81504 | HB40G-80117 | HB50G-SK(U) |
| HB15G-80322 | HB20G-80322 | 122133-48000 | HB40G-80113 | HB50G-70111 |
| HB15G-80319 | HB20G-80115 | HB30G-81414 | HB40G-80114 | HB50G-70101 |
| HB15G-2-SK | HB20G-SK303 | HB30G-2-SK | HB40G-2-SK | HB50G-70203 |
Furukawa Breaker Chisel Thrust Bush
HB20G-20204 HB20G-20204 HB30G-20204 HB40G-20204 HB50G-20104
Furukawa Hammer Chisel Thrust Ring
HB20G-20205 HB20G-20305 HB30G-20205 HB40G-20205 HB50G-20105
Furukawa Breaker Cylinder Through Bolt
HB2G-36101 HB8G-36101 HB15G-36311 HB20G-36311 HB30G-36311 HB40G-36311
