Hyundai R130 Excavator Swing Device Reduction Gear Shaft Pinion drive HHI13-WP02
Product Description
Hyundai R130 Excavator Swing Device Reduction Gear Shaft Pinion drive HHI13-WP02
Hyundai HHI13-WP02 shaft pinion for R130 Excavator swing reduction gear planetary gearbox. Offer spare parts for Hyundai R130 excavator swing reduction gearbox, planetary gear, sun gear, carrier planetary, shaft, gearbox assembly available.
Landa Machinery Equipment Co., Limited supply brands of excavators spare parts, Quality replacement parts for Caterpillar, Case, Daewoo Doosan, Hitachi, Hyundai, JCB, John Deere, Kobelco, Komatsu, Kato, Kubota, Sumitomo, Volvo, etc. Genuine original parts and high quality stable OEM parts meet different need for customers. Full range Excavator Hydraulic System Oil Seal Components and seal kits, Hydraulic Breaker rock hammer oil seal and seal kits, Hydraulic Pump and Hydraulic Motor, and repair component kits for hydraulic pump and motors, Engine parts and engine related parts, electric solenoid valve, sensors, etc.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/application and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
B. If you can not find the parts you want here, please contact us for and inquiry. Thank you.
Email: sales@landamachinery.com
Skype: Landamachinery

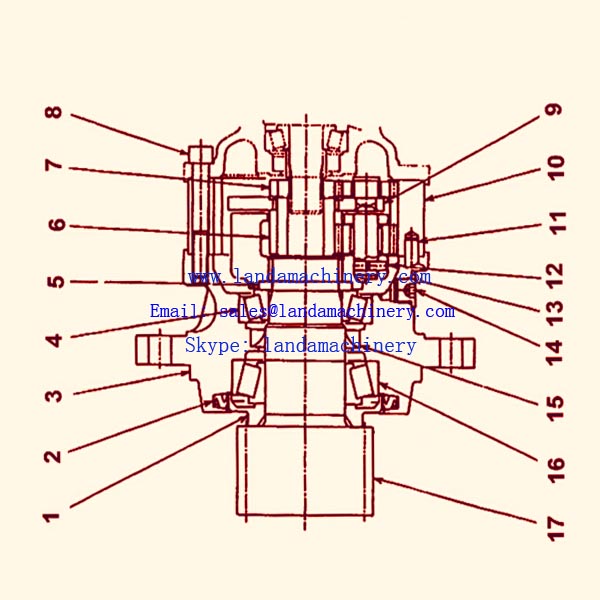

Parts List:
Hyundai excavator spare parts
31E6-12030 | SWING REDUCTION GEARBOX | 31E3-0003 | SWING MOTOR |
HHI13-WP01 | CASE | SG04E-033A | MOTOR ASSY |
HHI13-WP02 | SHAFT | 1399-200 | SEAT |
HHI13-WP03 | RING GEAR | 0722-149 | SEAL RING |
HHI13-WP05 | GEAR SUN | 0671-132 | ROLLER BEARING |
HHI13-WP06 | PLANETARY GEAR | 7589-008 | LEVER |
HHI13-WP07 | SUN GEAR | 1390-176 | SPRING |
HHI13-WP08 | CARRIER HOLDER | 1398-145 | CAM PLATE |
HHI13-WP09 | CARRIER HOLDER | 1398-158 | RETAINER PLATE |
HHI13-WP10 | PIN | 1321-120 | PISTON |
HHI13-WP11 | PIN | 7595-009 | TUBE |
HHI13-WP12 | THRUST WASHER | 7598-029 | FRICTION PLATE |
HHI13-WP13 | THRUST WASHER | 7598-030 | SEPARATION PLATE |
HHI13-WP33-2 | LEVER | 1320-140 | PISTON |
HHI13-WP32 | GAUGE | 0200-149 | O-RING |
HHI13-WP14 | PIN | 0201-011 | O-RING |
HHI13-WP15 | BEARING | 0200-150 | O-RING |
HHI13-WP16 | BEARING | 1390-162 | SPRING |
HHI13-WP17 | BOLT | 8022-101 | PIN |
HHI13-WP18 | OIL SEAL | 8320-001 | PLUG |
HHI13-WP29 | PLUG | 1390-163 | DISK SPRING |
HHI13-WP30 | PLUG | 0719-070 | BACKUP RING |
HHI13-WP19 | PIN SPRING | 1391-127 | BUSH |
HHI13-WP20 | SNAP RING | 1313-163 | BALANCE PLATE |
HHI13-WP21 | SNAP RING | 0682-134 | ROLLER BEARING |
HHI13-WP22 | SPACER | 0809-190 | SNAP RING |
HHI13-WP23 | COVER | 1318-167 | CYLINDER |
HHI13-WP24 | BOLT | 1311-180 | CASE |
HHI13-WP25 | BUSH | 8320-003 | PLUG |
HHI13-WP04 | PLANETARY GEAR | 3526-327 | CAP |
