KYB PSVL-54CG Piston Pump for CAT 304C 305D CR Main Pump
Item No.: KYB PSVL-54CG
Product Description

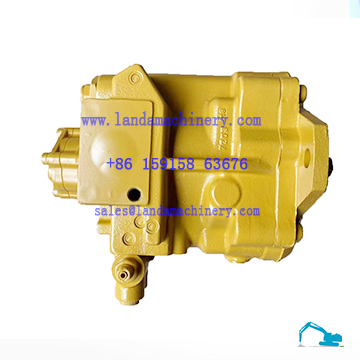

KYB PSVL-54CG Piston Pump for CAT 304C 305D CR Main Pump

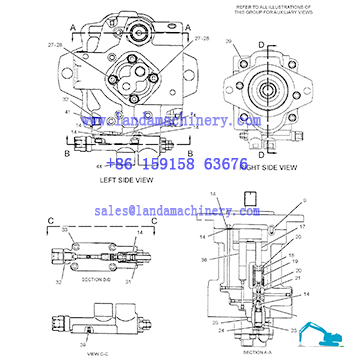

CAT 304C Excavator Hydraulic Pump
| 274-3344 | [1] | SHAFT | 265-8748 Y | [1] | MOTOR & MTG GP-SWING |
| 274-3346 | [1] | HOUSING | 265-8751 Y | [1] | MOTOR & MTG GP-TRAVEL |
| 294-1868 | [1] | COVER | S/N FPK1-2192 | ||
| 274-3349 | [1] | SPACER | 304-4756 Y | [1] | MOTOR & MTG GP-TRAVEL |
| 169-1136 | [1] | PIN | S/N FPK2193-UP | ||
| 274-3351 | [6] | SEAL AS | 260-6340 Y | [2] | SPROCKET GP |
| 193-5330 | [4] | SEAL AS | S/N FPK1-2192 | ||
| 095-1623 | [1] | SEAL-O-RING | 158-4752 Y | [1] | SPROCKET GP |
| 095-1713 | [2] | SEAL-O-RING | 099-7197 | [2] | PLUG |
| 8T-5376 | [1] | SEAL-O-RING | 095-1582 | [2] | SEAL-O-RING |
| 146-4875 | [1] | SEAL-BACK UP | 095-1580 | [3] | SEAL-O-RING |
| 146-4877 | [1] | SEAL-DUST | 6V-5192 M | [3] | BOLT-SOCKET HEAD |
| 095-0929 | [1] | RING-RETAINING | 095-0966 | [5] | PLUG |
| 9X-6032 M | [4] | BOLT-SOCKET HEAD | 095-1582 | [1] | SEAL-O-RING |
| 280-0397 | [1] | SPRING | 279-4698 | [1] | NUT |
| 279-4696 | [2] | SEAT-SPRING | 279-4699 | [1] | PUMP GP-GEAR (PILOT) |
| 279-4697 | [1] | VALVE AS-PUMP | 8T-0338 M | [2] | BOLT-SOCKET HEAD (M8X1.25X45-MM) |
| 095-1575 | [1] | SEAL-O-RING | 8T-4224 | [2] | WASHER-HARD (8.8X16X2-MM THK) |
| 095-1582 | [1] | SEAL-O-RING | 6V-8200 M | [6] | BOLT-SOCKET HEAD (M12X1.75X35-MM) |
| 095-1587 | [1] | SEAL-O-RING | 279-4700 | [1] | PLUG |
| 099-7197 | [1] | PLUG | 095-1584 N | [1] | SEAL-O-RING |
| 095-1590 | [1] | SEAL-O-RING | 3J-1907 JN | [3] | SEAL-O-RING |
| 099-7197 | [1] | PLUG | 6V-5683 M | [4] | BOLT (M6X1X16-MM) |
| 279-4706 | [1] | PLUG | 280-0398 | [1] | STOPPER |
| 279-4710 | [1] | SWASHPLATE GP | 279-4701 J | [1] | SEAL-O-RING |
| 279-4711 | [1] | BARREL GP-PUMP | 279-4702 | [1] | PIN |
| 279-4712 Y | [1] | VALVE GP-PUMP CONTROL | 095-1571 | [1] | SEAL-O-RING |
| 279-4707 J | [1] | KIT-SEAL (MAIN PUMP) | 279-4703 J | [1] | SEAL-O-RING |
| 279-4708 L | [1] | KIT-SEAL (MAIN PUMP) | 279-4704 | [1] | ORIFICE |
| 279-4709 N | [1] | KIT-SEAL (MAIN PUMP) | 279-4705 J | [1] | SEAL-O-RING |
